The No.A1690 Universal Truck Bush Replacement Tool Kit is a comprehensive, time-saving tool designed for the efficient replacement of bushings, axles, and bearings on heavy goods vehicles (HGVs) and buses. It utilises an 18-ton capacity hollow bore cylinder and a wide range of accessories to deliver a safe, simple, and speedy hands-free process, significantly reducing labour costs and time compared to traditional methods.

Features and Benefits:
- Capacity: 18-ton hydraulic power
- Versatility: Suitable for various makes and models, including Scania, Volvo, MAN, Mercedes, Renault, Iveco, and DAF.
- Efficiency: Up to 60% time and labour cost savings over traditional methods.
- Upgradeability: Can be easily upgraded for new vehicle types.

Applications:
- Designed for a broad range of truck and bus applications, effectively handling a variety of tasks involving bushings, axles, and bearings.

Operation:
1. Position the tool on the ball joint.
2. Use an air or hydraulic tool (compatible with 700 Bar/10,000 PSI, recommended T&E A3036/B3036 air/hydraulic foot pump) to operate the screw.
3. The tool will then push out the upper and lower ball joints efficiently.

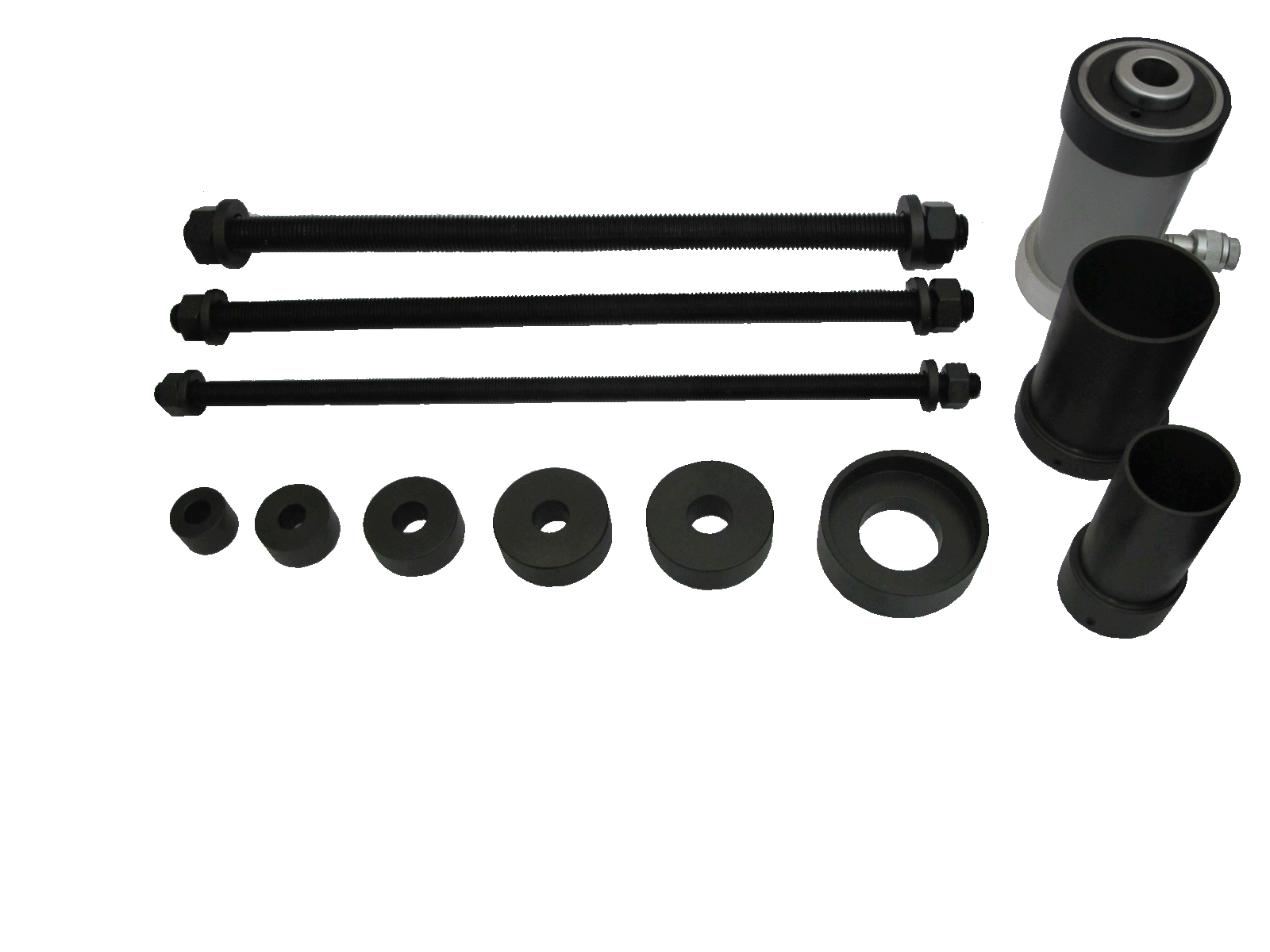

Kit Contents:
- Cylinder: A1690-15-2 (18-ton capacity, 50 mm stroke)
- Sleeves:
  - A1690-1 (Ø90 x 73 x 117 L mm)
  - A1690-2 (Ø64 x 49 x 117 L mm)
- Rods:
  - A1690-3 (M16 x P2.0 x 500L)
  - A1690-4 (M20 x P2.5 x 500L)
  - A1690-5 (M24 x P3.0 x 500L)
- Press Plates:
  - A1690-09 (Ø35 mm / Ø16 mm / 22 L mm)
  - A1690-10 (Ø55 mm / Ø20 mm / 22 L mm)
  - A1690-11 (Ø70 mm / Ø24 mm / 24 L mm)
  - A1690-12 (Ø45 mm / Ø16 mm / 22 L mm)
  - A1690-13 (Ø65 mm / Ø20 mm / 24 L mm)
  - A1690-14 (Ø90/80 mm / Ø45 mm / 30 L mm)

Important Safety Instructions:
1. Keep all instructions and T&E manuals accessible for all personnel.
2. Operators should wear recommended PPE, including safety glasses.
3. Read all operating and safety instructions before use.
4. Only allow authorised personnel to use the equipment.
5. Do not exceed maximum rated loads for screw rods.
6. Do not tamper with the hydraulic pump's safety valve settings.
7. Ensure threads are clean and avoid using damaged rods.
8. Align all components accurately before applying full load.
9. Avoid standing in line with the application when force is applied.
10. Keep unauthorised personnel out of the risk area.
11. Do not leave the equipment loaded when not in use.
12. Use genuine T&E power sources.
13. Only authorised workshops should perform maintenance.
14. T&E is not liable for any injuries or damages from the use of non-approved or rebuilt equipment.

Note: This kit does not include a pump. It is compatible with T&E pumps or any pump operating at 700 Bar/10,000 PSI. The recommended T&E pump #A3036 air/hydraulic foot pumps.

This kit provides a versatile, durable, and efficient solution for professional workshops, ensuring effective maintenance and repair of HGVs and buses.
