No.A1503 - Toyota Hi-Ace, Mercedes-Benz, Audi, VW, Porsche, Ford Transit Axle Extractor
Category Code: E
Item Number: A1503
Price (including GST)
The Toyota Hi-Ace Axle Extractor is an essential tool designed to efficiently and safely remove axles from vehicle hubs. This kit ensures a quick and easy process, minimising downtime and labour effort. The extractor is particularly compatible with a range of popular vehicle models, making it a versatile addition to any automotive workshop.
Key Features
- Rapid Axle Removal: Effortlessly pushes the axle out of the hub to facilitate swift removal.
- Versatile Application: Suitable for multiple vehicle brands and models.
- Durable Construction: Engineered to withstand rigorous use in professional settings.
- Patent: Registered under patent M253503, ensuring unique design and functionality.
- P.C.D. Compatibility: Compatible with Pitch Circle Diameters (P.C.D.) ranging from 130mm to 160mm.
Applications
The Toyota Hi-Ace Axle Extractor is suitable for the following configurations:
- 130mm Diameter, 5 Holes: Compatible with Mercedes-Benz, Audi, Porsche.
- 130mm Diameter, 4 Holes: Compatible with Volkswagen (VW), Ford Transit, Mercedes-Benz.
- 139.7mm Diameter, 4 Holes: Compatible with Volkswagen (VW), Ford Transit, Mercedes-Benz.
- 140mm Diameter, 5 Holes: Specifically compatible with Mercedes-Benz.
- 160mm Diameter, 4 Holes: Compatible with Volkswagen (VW), Ford Transit, Mercedes-Benz.
Additional Information

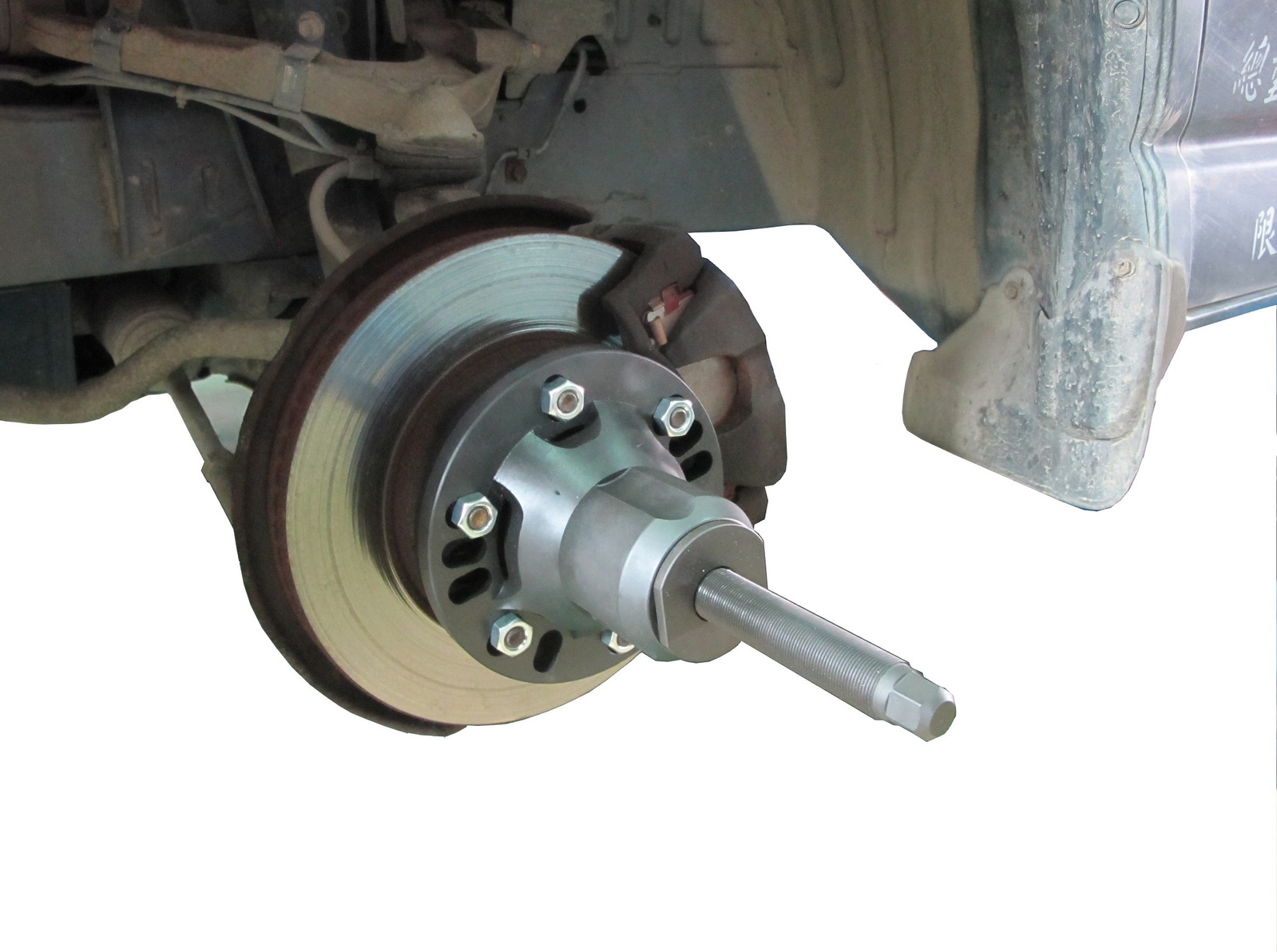

This tool is specially designed to not only push the axle out of the hub but also to ensure the hub’s removal. This dual functionality makes it a highly efficient tool for automotive mechanics.
With its wide range of applications and robust design, the Toyota Hi-Ace Axle Extractor is a high-quality, reliable choice for professionals looking to improve their axle removal processes.

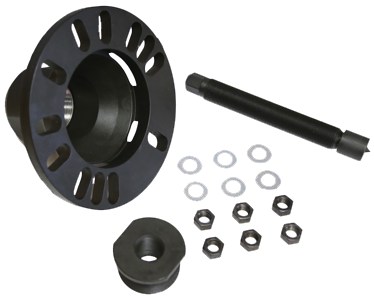

ITEM NO | Description | Specification | Q’ty | Remark |
1 | Extractor | D:Ø185x111L | 1 | Ø 57x14UNC |
2 | Screw | D:Ø57x14UNCx36L | 1 | d:M24xP1.5 |
3 | Bolt | M24xP1.5x185L | 1 | H19 |
4 | Mandrel | Ø25x30L | 1 | |
5 | Washer | M12x t2 | 6 | |
6 | Nut | D:M12xP1.5 | 6 | H19 |
Application: Toyota Hi-Ace and the followings |
||
Ø | Brand of car | |
130 | Mercedes-Benz, Audi, Prosche | 5 Holes |
130 | VW,Ford Transit, Mercedes-Benz | 4 Holes |
139.7 | VW,Ford Transit, Mercedes-Benz | 4 Holes |
140 | Mercedes-Benz | 5 Holes |
160 | Ford Transit, Mercedes-Benz | 4 Holes |
Barcode # | 9322159815023 |
