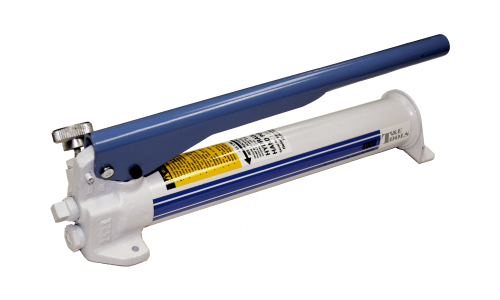

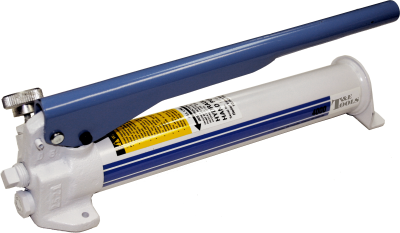

These 10,000psi. Hand Pumps feature Viton seals, fully welded body construction, bronze bushes, chrome plated bores and internal by-pass valve to prevent damage from overload operation. A precision forged valve block to eliminate leakage and double speed pump operation to reduce the number of hand strokes.

  • Output Threads: 3/8 NPT Female.
  • Handle Force: 58kgf.

Single & Two Stage Hydraulic Hand Pumps:

Item No Speed Pressure Rating Volume Per Stroke Reservoir Capacity Piston Diameter Piston Stroke Weight
2-4000 1 10,000 psi 1.14cc 205cm3 8.1mm 19mm 3.1kg
SBZ50 1 10,000 psi 3.08cc 820cm3 12.7mm 20mm 4kg
SBZ50S 2 200/10,000 psi 12.3 / 3.08cc 820cm3 32 & 12.7mm 20mm 4kg
Barcode # 9322159440003
