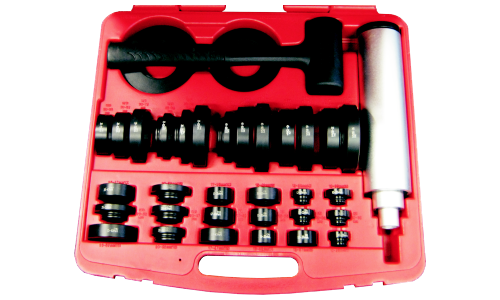

This bearing fitting tool kit is made from shock-resistant polyacetate. The light model kit is designed to be taken along and used out in the field.

It includes 33 polyacetate sleeve heads and 3 impact driving sleeves plus a 2.3Lb (1.05kg) dead blow soft face hammer.

Driving Sleeves:

  • 229mm x 60mm
  • 232mm x 39.5mm
  • 232mm x 25mm

Weight: 3.2kg

Polyacetate Sleeve Sizes (Inside & Outside Diameters):

10mm I.D.-26mm O.D. 10mm I.D.-30mm O.D. 10mm I.D.-35mm O.D.
12mm I.D.-28mm O.D. 12mm I.D.-32mm O.D. 12mm I.D.-37mm O.D.
15mm I.D.-42mm O.D. 15mm I.D.-35mm O.D. 15mm I.D.-32mm O.D.
17mm I.D.-35mm O.D. 17mm I.D.-40mm O.D. 17mm I.D.-47mm O.D.
20mm I.D.-42mm O.D. 20mm I.D.-47mm O.D. 20mm I.D.-52mm O.D.
25mm I.D.-47mm O.D. 25mm I.D.-52mm O.D. 25mm I.D.-62mm O.D.
30mm I.D.-55mm O.D. 30mm I.D.-62mm O.D. 30mm I.D.-72mm O.D.
35mm I.D.-62mm O.D. 35mm I.D.-72mm O.D. 35mm I.D.-82mm O.D.
40mm I.D.-68mm O.D. 40mm I.D.-80mm O.D. 40mm I.D.-90mm O.D.
45mm I.D.-75mm O.D. 45mm I.D.-85mm O.D. 45mm I.D.-100mm O.D.
50mm I.D.-80mm O.D. 50mm I.D.-90mm O.D. 50mm I.D.-110mm O.D.



Barcode # 9322159390193
