Ref Item No. OEM No. Description
1 A1159-1  271 589 01 40 00 For drawing in the timing chain. Retains timing chain with camshaft sprockets in proper timing position.
2 A1159-2 271 589 00 61 00 Make it possible to position the camshafts in the installed position.
3 B1159-1 271 589 00 15 00  To install the plug into the timing case cover (access to chain tensioner).
4 B1159-2 271 589 00 31 00 For unloading the timing chain tensioning device.
5 A1436 271 589 00 10 00 For removal crankshaft front gear wheel release the timing chain.
6 D1159-6   Make it possible to position the camshafts in the installed position (FACELIFT).
7 A1022-A   Fix the camshaft.
8     Blow Mould Case.

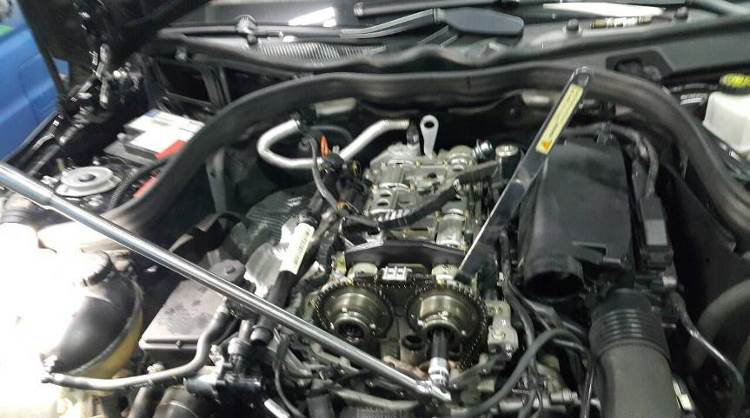

When you remove the front gear of camshaft, you must use a 32 mm wrench to hold it.

Then you can use T100 socket to remove the front gear wheel.

Application:
Mercedes: CLK 200K (W209), C180K, C200K, C230K (W203), C- Coupe C160K, C180K, C200K, C230K, E200K (W211), SLK 200K (R171), C180K (W204), CLC180K, CLC200K, C180CGI, C200CGI, C250CGI (W204), E200CGI, E250CGI (W212, C207)
Engine: 1.6/1.8
Engine code: All BENZ (M271)

Barcode # 9322159311594
