These low profile "pancake" cylinders are used where clearances are limited. For working pressures to 10,000psi A unique heavy-duty return spring provides rapid return of the piston.

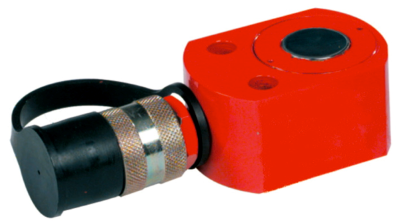

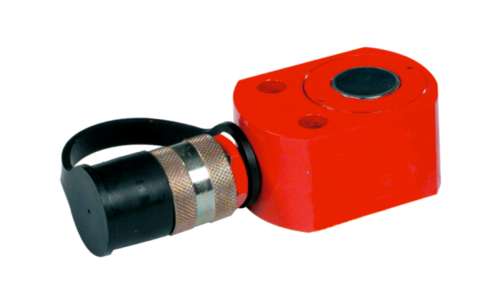

"LJ" Series Low Profile Spring Return Hydraulic Cylinders:

Item No Capacity Stroke Retracted Extended Piston Dia. Outside Dia. Oil Capacity Oil Port Thread Weight
LJ005 5 Ton 6mm 33mm 39mm 17mm 65 x 44mm 5cc 3/8rpt 0.8kg
LJ010 10 Ton 11mm 43mm 54mm 28mm 84 x 60mm 18cc 3/8rpt 1.6kg
LJ020 20 Ton 11mm 52mm 63mm 40mm 102 x 76mm 32cc 3/8rpt 2.7kg
LJ030 30 Ton 12mm 60mm 72mm 50mm 118 x 95mm 75cc 3/8rpt 4.3kg
Barcode # 9322159777635
