Features: Viton seals, fully welded pump construction, bronze bushes, chrome plated bore, internal overload valve, one piece handle, quick release hose coupling, snap ring fittings for extensions and attachments.

Push and spread. Comes in a solid blow mold case with instructions and parts breakup sheet.

Note: Pump is not available separate however the TL3930 can be used as a suitable replacement

10 Ton Body Repair Kit (Available Separately):

Part No. Description Measurments
PP004A-2 1520mm (5'ft) Hydraulic  Hose with Fitting 1520mm
PP010A-3 10 Ton Hydraulic Ram with Fitting 375mm long, 150mm (6") Stroke
PP004A-4 1/2 Ton Spreader Ram to suit to PP010A, PP004A and PP011B 50mm x 16mm thick at the tip
PP010A-5 610mm (24") Lock-On Extension Tube to suit PP010A Ø43mm x 610mm
PP010A-8 127mm (5") Lock-On Extension Tube to suit PP010A Ø43mm x 127mm
PP010A-9 Male Base Connector to suit PP010A 10mm space in the centre
PP010A-10 Flat Base to suit PP010A Base 149mm x 96mm  and  57mm high
PP010A-11 90 Degree V Base to suit PP010A 54mm x 54mm x 76mm
PP010A-12 Wedge Head to suit PP010A Ø47mm x 95mm x 12mm at the tip
PP010A-13 Spreader Plunger Toe for to suit PP010A 63mm x 62mm x 20mm thick at the Toe
PP010A-14 Spreader Ram Toe to suit PP010A 47mm x 74mm x 18mm thick at the Toe
PP010A-15 Flex Head to suit PP010A Ø74mm x 76mm
PP010A-16 Serrated Saddle to suit PP010A Ø47mm x 63mm

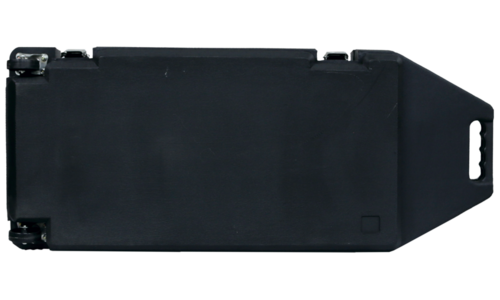

PP010A-17 Blow Mold Case to suit PP010A
PP010A-18 356mm (14") Lock-On Extension Tube to suit PP010A
PP010A-19 483mm (19") Lock-On Extension Tube to suit PP010A
Optional Accessories
PP010A-6 406mm (16") Lock-On Extension Tube to suit #PP010A
PP010A-7 254mm (10") Lock-On Extension Tube to suit PP010A



Barcode # 9322159409673
