Features: Viton seals, fully welded pump construction, bronze bushes, chrome plated bore, internal overload valve, one piece handle, quick release hose coupling, snap ring fittings for extensions and attachments.

Note: Pump is not available separate however the TL3930 can be used as a suitable replacement

4 Ton Body Repair Kit (Available Separately):

Part No. Description Measurement
PP004A-2 1520mm (5'ft) Hydraulic  Hose with Fitting 1520mm
PP004A-3 4 Ton Hydraulic Ram with Fitting 270mm long, 102mm (4") Stroke
PP010A-4 1/2 Ton Spreader Ram to suit to PP010A, PP004A and PP011B 50mm x 16mm thick at the tip
PP004A-5 457mm (18") Lock-On Extension Tube to suit PP004A Ø30mm x 457mm
PP004A-6 305mm (12") Lock-On Extension Tube to suit PP004A Ø30mm x 305mm
PP004A-7 203mm (8") Lock-On Extension Tube to suit PP004A Ø30mm x 203mm
PP004A-8 102mm (4") Lock-On Extension Tube to suit PP004A Ø30mm x 102mm
PP004A-9 Male Base Connector to suit PP004A
PP004A-10 Flat Base to suit PP004A Base 108mm x 61mm  and  50mm high

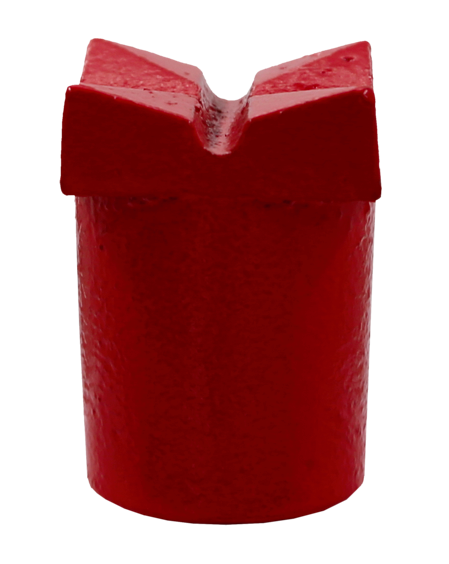

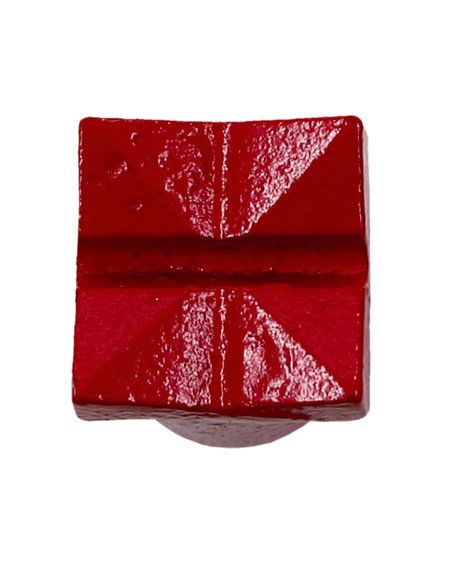

PP004A-11 90 Degree V Base to suit PP004A 37mm x 37mm x 53mm
PP004A-12 Wedge Head to suit PP004A Ø35mm x 85mm x 9mm at the tip
PP004A-13 Spreader Plunger Toe for to suit PP004A 39mm x 73mm x 10mm thick at the Toe
PP004A-14 Spreader Ram Toe to suit PP004A 35mm x 33mm deep x 16mm thick at the Toe
PP004A-15 Flex Head to suit PP004A Ø67mm x 61mm
PP004A-16 Serrated Saddle to suit PP004A Ø35mm x 48mm
PP004A-17 Blow Mold Case to suit PP004A



Barcode # 9322159404111
