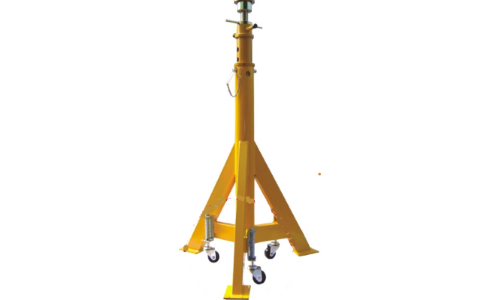

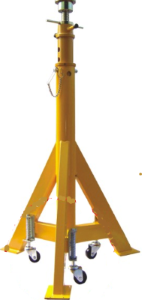

Extra heavy duty truck jack stand, .fully welded with spring operated swivel casters for easy positioning and portability. Saddle has a wind up thread and the removable tube can be set at eleven different intervals.

  • Capacity: 14,732 kg. (33,000 Lb.) (15 Ton)
  • Width: 948.5mm
  • Length: 821.5mm
  • Height: Max. 2089mm, Min. 1389mm
  • Stroke: 700mm
  • Weight: 98kg

Parts List for B2158 33,000lb. Truck Jack Stand (Available Separately):

Item No. Description Quantity
B2158-1Stand Body1
B2158-2Removal Tube1
B2158-3Spring1
B2158-4Load Pin1
B2158-5Swivell Adaptor1
B2158-6Spindle Assy.1
B2158-7Saddle1
B2158-8Frame3
B2158-9Pin3
B2158-10washer3
B2158-11Spring Pin3
B2158-12Spring3
B2158-13Caster3
B2158-14Screw6
Barcode # 9322159821598
