Each extension bar is designed to limit the specified torque. Impact wrench should be adjusted to work within approximate torque range.

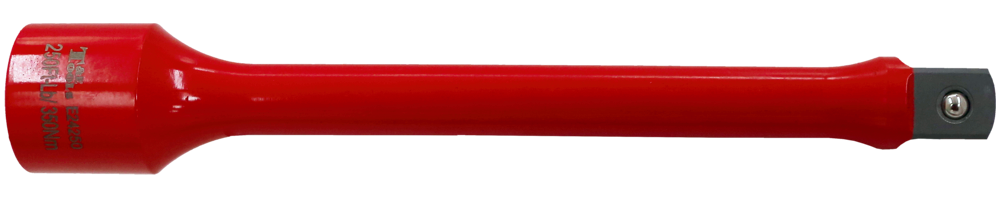

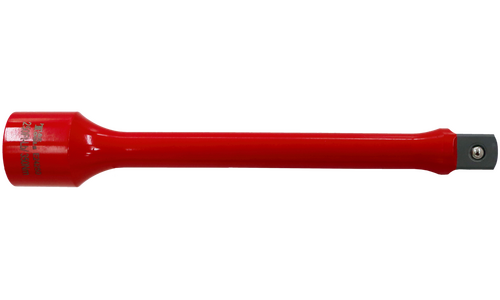

3/4"Drive Wheel Torque Socket Extensions

Item No. Description Nm Length
E24175 175ft/lb 3/4"Drive Torque Extension 238Nm 245mm
E24250 250ft/lb 3/4"Drive Torque Extension 340Nm 245mm
E24350 350ft/lb 3/4"Drive Torque Extension 476Nm 245mm
E24475 475ft/lb 3/4"Drive Torque Extension 646Nm 245mm



1"Drive Wheel Torque Socket Extensions



Item No. Description Nm Length
E32250 250ft/lb 1"Drive Torque Extension 340Nm 265mm
E32350 350ft/lb 1"Drive Torque Extension 476Nm 265mm
E32475 475ft/lb 1"Drive Torque Extension 646Nm 265mm
E32650 650ft/lb 1"Drive Torque Extension 885Nm 265mm
Barcode # 9322159660951
