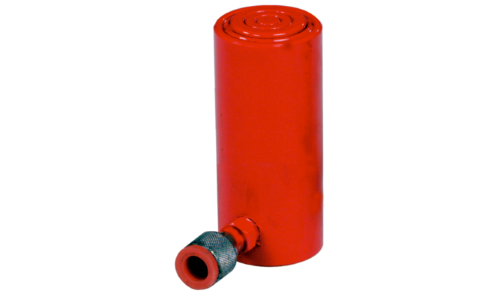

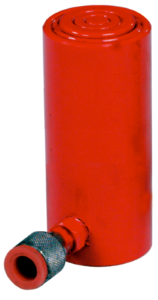

"RA" Cylinders have a heavy-duty return spring for rapid piston return and integral carry handles on 20 Ton and up. For working pressures to 10,000 psi.

"RA" Series Spring Return Hydraulic Cylinders (Available Separately):

Item No Capacity Stroke Retracted Extended Piston Dia. Outside Dia. Oil Capacity Oil Port Thread Weight
RA0022 Ton76mm140mm216mm22mm33mm38.5cc1/4npt0.8kg
RA01010 Ton156mm247mm403mm38mm57mm226cc3/8npt4.1kg
RA02025 Ton50mm165mm215mm57mm86mm166cc3/8npt6.2kg
RA03050 Ton51mm176mm227mm80mm127mm361cc3/8npt14.4kg
RA010A10 Ton304mm400mm704mm38mm57mm441cc3/8npt6.4kg
RA020A25 Ton158mm273mm431mm57mm86mm524cc3/8npt10.3kg
RA030A30 Ton159mm282mm441mm80mm127mm1127cc3/8npt22.1kg
Barcode # 9322159480986
