Multi lock sockets are a new patented design that fit six different fastener configurations: Square, Torx-r, 6 Point, 12 Point, SAE & Metric, Spline and Ribe.

Multi-Lock Sockets (Available Separately):

Item No. Size Drive Length
M5410 10mm 1/2" Square 37mm
M5411 11mm 1/2" Square 37mm
M5412 12mm 1/2" Square 37mm
M5413 13mm 1/2" Square 37mm
M5414 14mm 1/2" Square 37mm

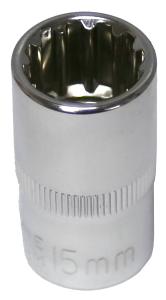

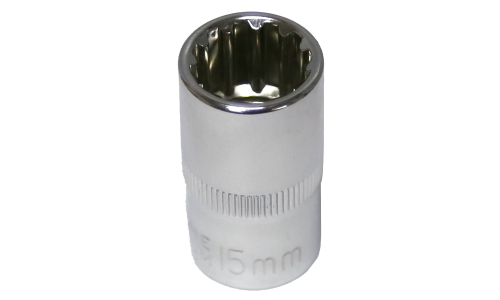

M5415 15mm 1/2" Square 37mm
M5416 16mm 1/2" Square 37mm
M5417 17mm 1/2" Square 37mm
M5418 18mm 1/2" Square 37mm
M5419 19mm 1/2" Square 37mm
M5420 20mm 1/2" Square 37mm
M5421 21mm 1/2" Square 37mm
M5422 22mm 1/2" Square 37mm
M5423 23mm 1/2" Square 39mm
M5424 24mm 1/2" Square 39mm
M5426 26mm 1/2" Square 41mm
M5427 27mm 1/2" Square 41mm
M5428 28mm 1/2" Square 41mm
M5430 30mm 1/2" Square 44mm
M5432 32mm 1/2" Square 44mm

Sizes That Multi-lock Sockets Fit For All The Different Configurations:

MM (12 Point) SAE (6 Point) Torx (Star) Spline Square WW (12 Point) E-Torx (Female) (Star)
10mm - T55 - - - -
11mm 7/16" T60 M14 3/8" 3/16" E16
12mm - - - - - -
13mm 1/2" T70 M16 7/16" 1/4" E18
14mm 9/16" - M18 - - -
15mm - T80 - 1/2" 5/16" E20
16mm 5/8" - - - - -
17mm - T90 - - - E22
18mm - - - 5/8" 3/8" -
19mm 3/4" T100 - - - E24
20mm - - - - - -
21mm - - - - 7/16" -
22mm 7/8" - - 3/4" - -
23mm - - - - - -
24mm 15/16" - - - 1/2" -
26mm - - - - 9/16" -
27mm 1.1/16" - - - - -
28mm - - - - 5/8" -
30mm 1.3/16" - - 1" 11/16" -
32mm 1.1/4" - - - - -
Barcode # 9322159654158
