Universal application for nearly all type of clutch plates, FF, FR, 4WD with bearing and FF without bearing. Available for manual passenger vehicles and small trucks (below 3500c.c).

Available for manual transmission system and nearly all vehicles with single discs, some vehicles with double discs. Not suitable for DSG (double clutch) system.

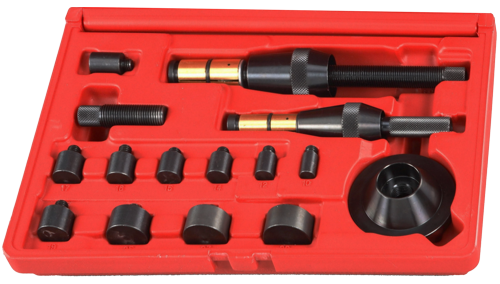

Set Contains:

• (A) Spindle Guide: 55mm length 15mm x 1.5P thread Mandrel Range: 15mm to 19mm.
• (B) Spindle Guide: 100mm length 15mm x 1.5P thread Mandrel Range: 19.5mm to 26mm.
• (C) Spindle Guide: 150mm length 15mm x 1.5P thread. For small and large cone.
• (D) Small cone adaptor Spindle inner thread: M15 x 1.5P. Range: 19mm ~ 30mm. Tail ID: 20mm. Suitable for (A) 55mm spindle.
• (E) Large cone adaptor Spindle inner thread: M15 x 1.5P. Range: 26mm ~ 35mm. Tail ID: 27mm. Suitable for (B) 100mm spindle.
• (F) Dual Disc Adaptor Height: 30mm. Cone side: 29mm ~ 49mm. Plate side: 49mm ~ 69mm Especially to guide FF engine clutch which is without bearing.
• (G) Pilot Adaptor: 10, 12,14,15,16,17,19,25,27 For pilot. Available for clutch with bearing. Not suitable for FF without bearing.
