Model Capacity Stroke Screw Retracted Extended Weight

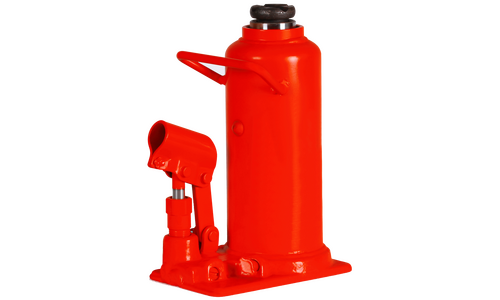

TL3412 12 Ton 150mm 88mm 250mm 480mm 7.7kg

Hydraulic Jacks comply to CE / ANSI / PALD standards and tonnage ratings. Australian / NZ standards are pending at time of print.

Industrial series jacks feature in-line design making it more convenient to be positioned and operated. Welded base and cylinders to ensure strength and eliminate leaks. Chrome plated pump piston and ram for added rust resistance. Fitted with safety valves to protect overloading.

They can be used vertically, horizontally or at any angle for application versatility. Jacks feature fewer working parts, internally machined oil passages, extremely smooth bearing surfaces, and close tolerances to ensure trouble free service and long life. Extension screw gives added height when necessary.

Meets ANSI / ASME PALD standards and CE / GS standards.

Bottle Jacks (Available Separately):

Model Stroke(mm) Screw(mm) Retracted(mm) Extended(mm)
TL3202 117mm 64 mm 178 mm 353 mm
TL3203 110 mm 70 mm 190 mm 365 mm
TL3205 132 mm 82 mm 197 mm 410 mm
TL3208 123 mm 85 mm 200 mm 399 mm
TL3312 95 mm 85 mm 175 mm 180 mm
TL3320 89 mm 50 mm 180 mm 305 mm
TL3420 190 mm N/A 270 mm 440 mm
TL3230 165 mm N/A 280 mm 450 mm
Barcode # 9322159634105
