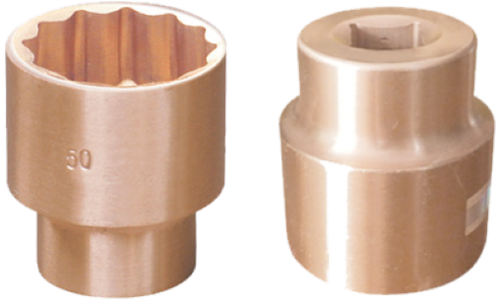

• DIN3120 Die forged.
  • Suitable for use where space is narrow or deep concavity to tighten or loosen bolts and nuts.

Sockets (C=1"):

Item No. S (mm) L (mm) Be-Cu (g) Al-Cu (g)
CB106-22 22 55 361 330
CB106-24 24 55 372 340
CB106-25 25 55 377 345
CB106-26 26 55 383 350
CB106-27 27 55 394 360
CB106-28 28 55 397 363
CB106-29 29 55 399 365
CB106-30 30 60 443 405
CB106-31 31 60 448 410
CB106-32 32 60 481 440
CB106-34 34 60 497 455
CB106-36 36 65 550 500
CB106-38 38 65 620 560
CB106-41 41 70 690 625
CB106-46 46 75 850 740
CB106-50 50 75 850 760
CB106-55 55 80 1160 1000
CB106-60 60 85 1390 1260
CB106-65 65 90 1750 1580
CB106-70 70 90 2150 1950
CB106-75 75 95 2680 2430
CB106-80 80 95 3080 2800

Item No. S (inch) L (mm) Be-Cu (g) Al-Cu (g)
CB106-1002 1-1/16 55 394 360
CB106-1004 1-1/8 55 398 364
CB106-1006 1-3/16 60 442 405
CB106-1008 1-1/4 60 470 431
CB106-1010 1-5/16 60 483 442
CB106-1012 1-3/8 60 490 448
CB106-1014 1-7/16 65 560 500
CB106-1016 1-1/2 65 620 560
CB106-1018 1-5/8 70 690 625
CB106-1020 1-7/8 75 850 740
CB106-1022 2 75 960 850
CB106-1024 2-1/4 80 1250 1130
CB106-1026 2-1/2 90 1700 1550
CB106-1028 2-3/4 90 2050 1850
CB106-1030 3 95 2750 2500
Barcode # 9322159500660
